Split Muff Couplings

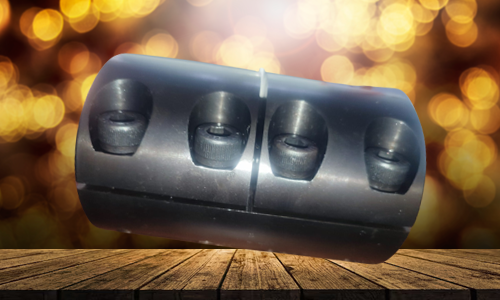

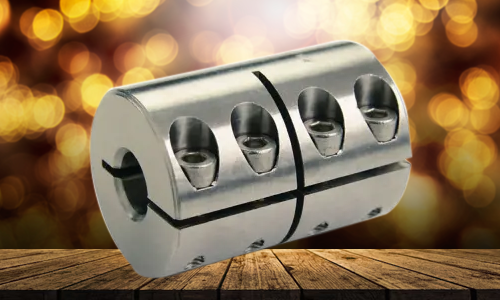

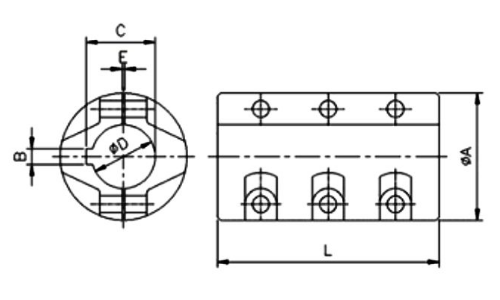

Technical Data
| Size | bore ΦD (H8) (mm) | A | L | KEY WAY | E | BOLT | torque (kgf.m) | ||
|---|---|---|---|---|---|---|---|---|---|
| B (159) | C | key (bxh) | |||||||
| P-E25 | Φ25 | Φ50 | 85 | 7 | 28 | 7X7 | 1.6 | 4-M6x30L | 22 |
| P-E30 | Φ30 | Φ60 | 100 | 7 | 33 | 7X7 | 1.6 | 4-M6x30L | 30 |
| P-E35 | Φ35 | Φ70 | 115 | 10 | 38.5 | 10X8 | 1.6 | 4-M8x35L | 40 |
| P-E40 | Φ40 | Φ80 | 130 | 10 | 43.5 | 10X8 | 1.6 | 6-M10x40L | 55 |
| P-E45 | Φ45 | Φ90 | 150 | 12 | 48.5 | 12X8 | 1.6 | 6-M10x45L | 70 |
| P-E50 | Φ50 | Φ100 | 165 | 12 | 53.5 | 12X8 | 2 | 6-M10x45L | 95 |
| P-E55 | Φ55 | Φ110 | 170 | 15 | 60 | 15X10 | 2 | 6-M10x45L | 120 |
| P-E60 | Φ60 | Φ120 | 170 | 15 | 65 | 15X10 | 2 | 6-M10x45L | 150 |
